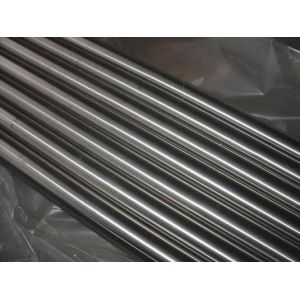

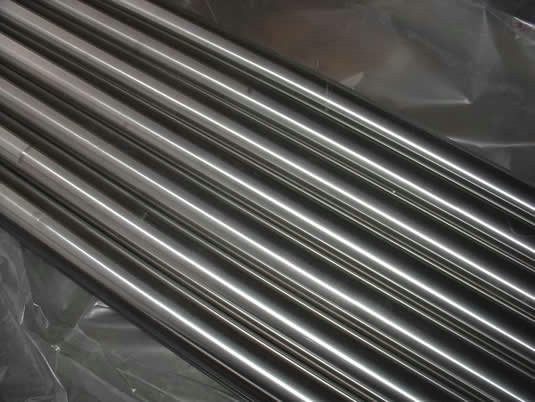

Hot Rolling Gr11 Titanium Round Bar With ASTMB 348 Standard
Quick Details
Ti6Al4V titanium bar
1)Size:0.3-200mm.
2)Grade:Gr1,Gr2,Gr3,Gr4,Gr5,Gr7,Gr11,Gr12
3) Standard:ASTM B348,ASTM F136,AMS 4928Q
Description:
We can produce various grades and sizes Ti6Al4V titanium bars and
according to the requests of customers.
1)Size:0.3-200mm.
2)Grade:Gr1,Gr2,Gr3,Gr4,Gr5,Gr7,Gr9,Gr11,Gr12
3)Standard:ASTM B348,ASTM F136,AMS 4928Q
Sizes:hot rolling:Dia6.0-200mm*L
cold rolling:Dia6.0-60mm*L
cold extruding:Dia3.0-20mm*L
Tolerance:h7-h11
Test:provide Bao Ti Center Physical and Chemical Test Report or
Northwest Institute For Non-ferrous
Metal Research Test Report.
Common Specification: | Specification: | Product Form |
| AMS 4911 | Sheet,Strip and Plate,Annealed |
AMS 4928 | Bars,Wire,Forgings and rings,Annealed |
ASTM B348(Gr5) | Bars and Billets,Annealed |
Chemistry Requirements:% Maximum unless given as a range/
N | C | H | Fe | O | Al | V | Y | Ti |
0.05 | 0.08 | 0.125 | 0.40 | 0.2 | 5.5-6.75 | 3.5-4.5 | 0.005 | Balance |
Minimum Tensile Properties:
Condition | UTS ksi (Mpa) | 0.2%YS ksi (Mpa) | %EI. | %RA* |
As specified(shape) | 130(895) | 120(828) | 10 | 25 |
Solution Treated and Aged | 160(1103) | 150(1034) | 10 | 20 |
State | Diameter mm | Longitudinal,Transverse room-temperature mechanical properties |
σb Mpa(ksi) | σ0.2 Mpa(ksi) | δ40% | ψ% |
longitudinal | transverse | longitudinal | transverse |
Annealing | <44.45 | 862125 | 793115 | 10 |
| 25 |
|
44.45-63.5 | 827120 | 758110 | 8 | 8 | 20 | 15 |
63.5-101.6 | 827120 | 758110 | 8 | 8 | 15 | 15 |
Applications:
1. Chemical industry
2. Petrochemical industry
3. Machining field,Automobile field,etc.
4. Textile printing and dyeing
Specification
Material: Gr1,Gr2,Gr3,Gr4,Gr5,Gr7,Gr9,6AL4V
Standard: ASTM B348,ASTM F67,F136,ASME SB348,ISO5832/2,WL 3.7034
Size: Diameter 5mm-230mm
Length 300mm-5000mm
Quality inspection:Ultrasonic Detector.
Testing: offer “Product Quality Certificate"
Packaging: wooden case or as requested
MOQ:10 Kg
Delivery time: 7-25 day
Chemical requirements
