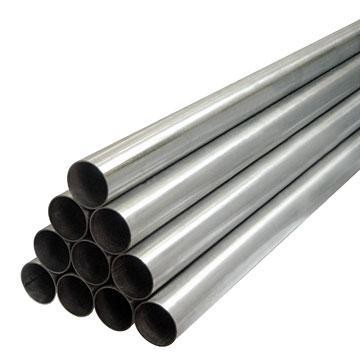

High Tensile Strength GR2 Titanium Tube , Autocar Titanium Tube
Quick Details :
1.standard: ASTM 337/338/861/862 --
2.Grade:Gr1,Gr2,Gr3,Gr5,Gr7,Gr9,Gr12
3.OD:2.0-219mm,WT: 0.3--20mm
4.ISO 9001-,SGS
1>Small titanium pipe
1.standard: AST cp titanium pipe M 337/338/861/862 --
2.Grade:Gr1, Seamless Gr2,Gr3,Gr5,Gr7,Gr9,Gr12
3.OD:2. 0-219mm,WT: 0.3--20mm
4.ISO 9001-,SGS
2>Product introduce
Titanium tube
Grade | ASTM: Gr1,Gr2,Gr3,Gr4,Gr5,Ti6Al4V ELI, Gr7,Gr9,Gr11,Gr12,Gr23 |
Standard | ASTM B337,ASTM B338,ASTM F136,ASTM F67,ASTMB861 |
Size | Dia0.8-114mm x L ≤15000mm |
Applications | Medical, aviation, oceanic industries, petrochemical engineering, military, autocar,power plant and so on. |
Parameter | titanium tube of chemical requirements titanium tube of tensile requirements |
Table 1 The Tensile Properties of the Titanium tube
grade | Tensile strength(min) | Yeild strength(min) | Elongation (%) |
ksi | MPa | ksi | MPa |
1 | 35 | 240 | 20 | 138 | 24 |
2 | 50 | 345 | 40 | 275 | 20 |
5 | 130 | 895 | 120 | 828 | 10 |
7 | 50 | 345 | 40 | 275 | 20 |
9 | 90 | 620 | 70 | 438 | 15 |
12 | 70 | 438 | 50 | 345 | 18 |
Table 2 Permissible Variations in Outside Dimensions Based on
Individual Measurements
Outside Diameter (mm) | Diameter Tolerance (mm) | Permissible VariationsB in Wall Thickness, t, % |
(25.4), excl | ±0.102 | ±10 |
(25.4 to 38.1), excl | ±0.127 | ±10 |
(38.1 to 50.8), excl | ±0.152 | ±10 |
(50.8 to 63.5), excl | ±0.178 | ±10 |
(63.5 to 88.9), excl | ±0.254 | ±10 |
Table 3 The Main Products
Product name | external diameter (mm) | Wall thickness(mm) | length(m) | Supply capacity per month(m) |
Small diameter seamless titanium tube | Φ2~Φ6.5 | 0.2~0.5 | ≤10 | 100000 |
Small diameter seamless titanium tube | Φ7~Φ9.8 | 0.3~0.8 | ≤10 | 100000 |
Small diameter seamless titanium tube | Φ6~Φ7.5 | 1.5~2 | ≤10 | 80000 |
Small diameter seamless titanium tube | Φ8~Φ12.7 | 1~3 | ≤10 | 50000 |
Thin wall seamless titanium tube | Φ15.88~Φ50.8 | 0.3~0.89 | ≤17 | 20t |
Fin special seamless titanium tube | Φ19.05~Φ50.8 | 1.24~3 | ≤17 | 50t |
Applications:
Because of its high tensile strength - density ratio, excellent
corrosion resistance , anti-fatigue, anti-crack resistance, and it
can withstand moderately high temperatures, titanium alloys are
used in aircraft, armor deposited board, naval ships, spacecraft
and missiles
Specifications:
1>Production technology
Process (1) : Titanium Sponge----Voltage----Melting----Titanium
Ingots----Forging----Plate Billet----Hot-rolled----Titanium Belt----Welding----Welding Tube
Process (2) : Titanium Sponge----Voltage----Melting----Titanium
Ingots----Forging----Bar----Billet----Extrusion----Rolling----Straightening----Seamless Tube
2> Featrues of the product
1.Low Density and High Specificate Strength
2.Excellent Corrosion Resistance
3.Good resistance to effect of heat
4.Excellent Bearing to cryogenic property
5.Nonmagnetic and Non-toxic
6.Good thermal properties
3>Application
Because of its high tensile strength - density ratio, excellent
corrosion resistance , anti-fatigue, anti-crack resistance, and it
can withstand moderately high temperatures, titanium alloys are
used in aircraft, armor deposited board, naval ships, spacecraft
and missiles
4>Packing and delivering
Package: Plastic bags and form paper as inside,Wooden case as
outside
Shipping Terms: We offer air shipping(Like DHL,UPS,Fedex,TNT or
plain air shipping) and shipping by sea.
All will be decided by your quantity.Shipping cost and shipping
speed are
the primary thing when we considering shipping.
5>Our service
a.Reply your in inquiry within 24 working hours.
b.Customized design is available, OEM
